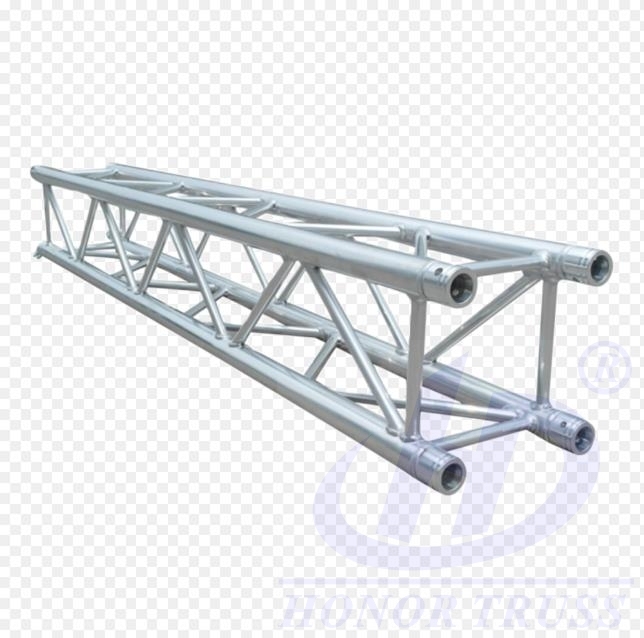

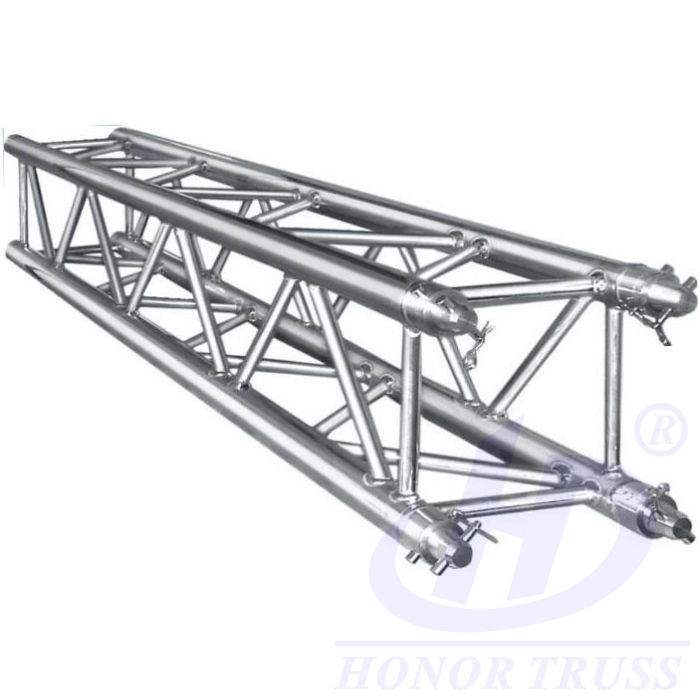

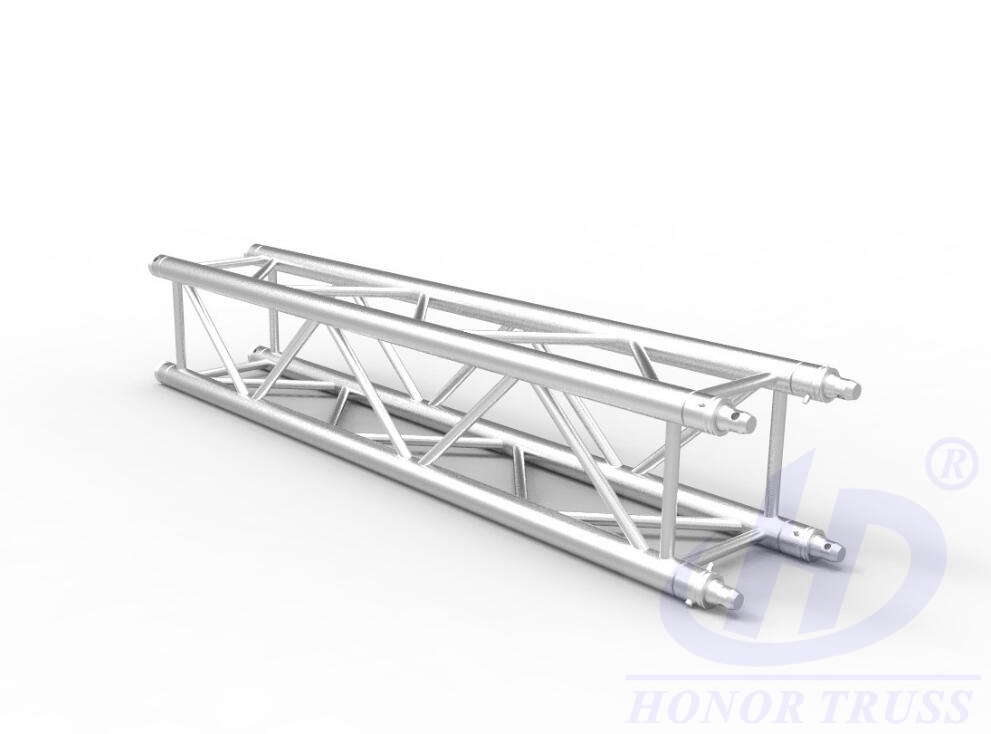

Product Description:
1.CS-30 is of span of 14m (46 feet) and can be used as tower truss with an extra solder climbing brace on one side (CS-30).
2.Using high quality 3mm wall thickness in the main tube, the truss is more durable and extra strong.
Designed for high frequency usage or installations, which demands higher loading.
3.Ideal stage trussing system and Widely used for rental, wedding and exhibition occasions.
4.Made with the fast connection system,easy to install and disassemble.
Note: The CS-30 with 3mm wall thickness, is discontinued as standard stock product but still available on request.
Facts
TüV approved
Also available in any non-standard length and shape
Tolerance free conical connector system
Wall thickness of 3 mm for 50 mm main tubes
CS-30 is also available as a Tower Truss (CS-30)
TECHNICAL SPECIFICATIONS
Height
300 mm / 11.81 inWidth
300 mm / 11.81in
Main Tube
50 x 3 mm / 1.97 x 0.12 in
Braces 20 x 2 mm / 0.79 x 0.08 in
Weight
~7.85 kg/m /
Pin Position
Diagonal
Material
International-6082 T6
Connection
CS1 - CON

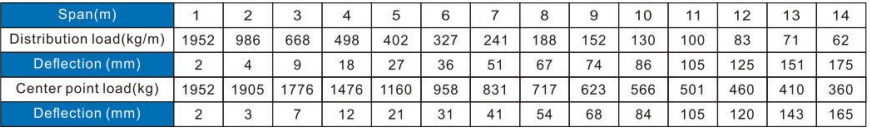

Loading charts
